Wholesale Tapered Roller Wheel Bearings Manufacturer – 30218 high precision taper roller bearing 30218 bearing 90x160x32.5 – Nice Bearing

Product description

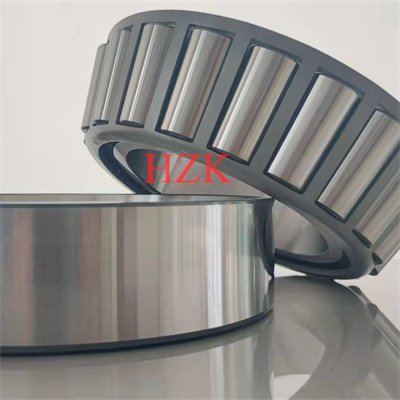

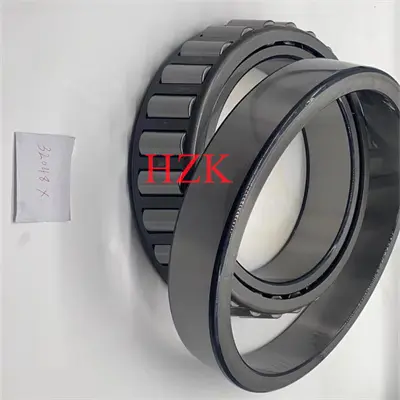

30218 Taper Roller Wheel Bearing, Bearing is made of Chrome Steel.

• Item: 30218 Ball Bearing
• Type: Tapered Roller Ball Bearing
• Cage: Chrome Steel
• Dimensions: 90mmx160mmx32.5mm/Metric
• ID (inner diameter)/Bore: 90mm
• OD (outer diameter): 160mm
• Width/Height/thickness: 32.5mm
• Size: 90 x 160 x 32.5 mm
• Quantity: One Bearing
• Dynamic load rating Cr: 204,000 N
• Static load rating Cor: 261,000 N
• Limiting Speed:
  • Grease Lubrication: 2,400 RPM
  • Oil Lubrication: 2,400 RPM

Product Specifications

Tapered roller bearings are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. We manufacture nearly 26,000 tapered roller bearing combinations – in single, double and four-row tapered roller bearing configurations. Customized geometries and engineered surfaces can be applied to these tapered roller bearings to further enhance performance in demanding applications.
Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads.
Taper roller bearing application:
Mainly used in axle box,motorcycle rear axle wheel hub, heavy machine tools’ main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.
