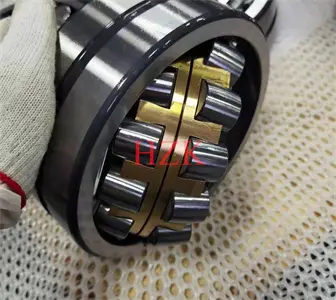

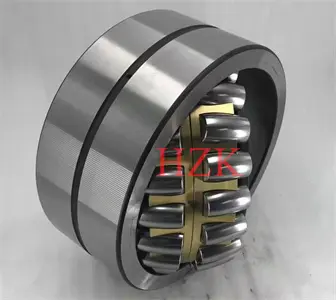

Wholesale Tapered Spherical Roller Bearing Manufacturer – 23084MBW33 spherical roller bearing 420x620x150 – Nice Bearing

Product description

• Item: 23084MBW33 Spherical Roller Bearing
• Type:  Spherical Roller Bearing
• Cage: Brass Cage
• Dimensions: 420mm x 620mm x 150mm
• ID (inner diameter)/Bore: 420mm
• OD (outer diameter): 620mm
• Width/Height/thickness: 150mm
• Size: 420x620x150mm
• Quantity: One Bearing
• Dynamic load rating Cr: 3,150,000 N
• Static load rating Cor: 4,300,000 N
• Limiting Speed:
  • Grease Lubrication: 840 RPM
  • Oil Lubrication: 1,000 RPM

Product Specifications

Spherical roller bearing is a rolling-element bearing that permits rotation with low friction,and permits angular misalignment. Typically spherical roller bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Most spherical roller bearing is designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load.

Feature:

1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength. 2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear. 3. Offer advanced material options: Super TF and TL steel, depending on application requirements. 4. Advanced Technology – patented Molded Oil lubrication system is also available. 5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available.

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis.
